Description
Available Sizes:
DN: 15 mm to 600 mm (½” to 24”)
Common Sizes: DN 15, 20, 25, 40, 50, 80, 100, 150, 200, 300
Welcome to Sensewell Instruments Pvt Ltd

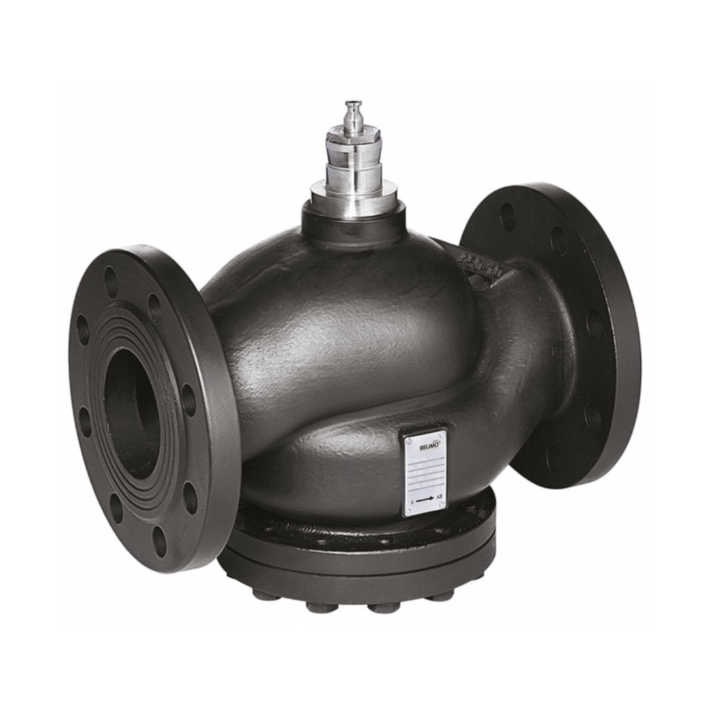

Globe Valve
A Globe Valve is a linear motion valve used to start, stop, and regulate the flow of fluid in pipelines. Unlike gate valves, globe valves offer better throttling capabilities due to their unique design where the disc moves perpendicular to the seat. They are commonly used in systems where precise flow control is required.
Types
Types of Globe Valves:
T-Pattern (Standard Type): Offers high pressure drop; ideal for throttling.
- Y-Pattern (Oblique Type): Lower pressure drop; suitable for high-pressure systems.
- Angle Pattern: Changes flow direction by 90°; used in pulsating or corrosive flows.
- Forged Steel Globe Valves: Compact design, typically used in high-pressure steam and oil & gas systems.
- Bellow Sealed Globe Valves: Prevent leakage, ideal for hazardous or toxic fluids.
Advantages
Key Advantages:
- Excellent throttling and flow regulation capability
- Positive shut-off with minimal leakage
- Easy maintenance due to top-entry bonnet design
- Durable construction for high-pressure and high-temperature applications

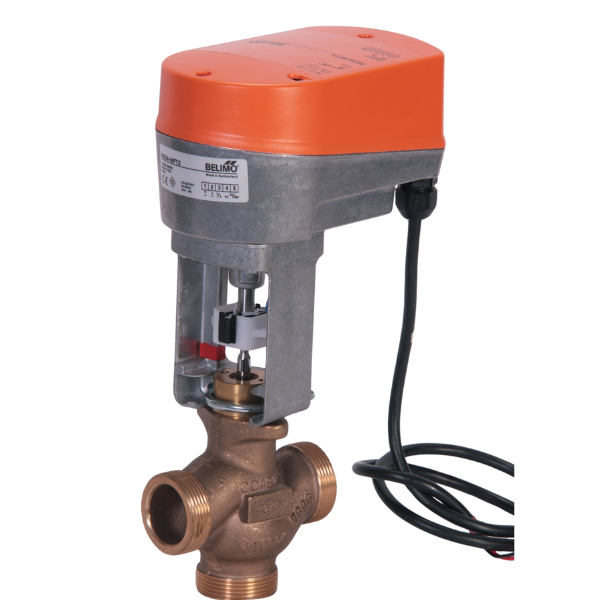

- Suitable for both manual and automated control
