Tabular Heater
Tubular heaters are versatile, consisting of a nickel-chrome resistance wire in a
metal sheath (stainless steel, Incoloy, or copper) filled with MgO insulation. They can be formed
into various shapes and operate at temperatures up to 1600°F (871°C), making them adaptable
to a wide range of applications.
Design Features:

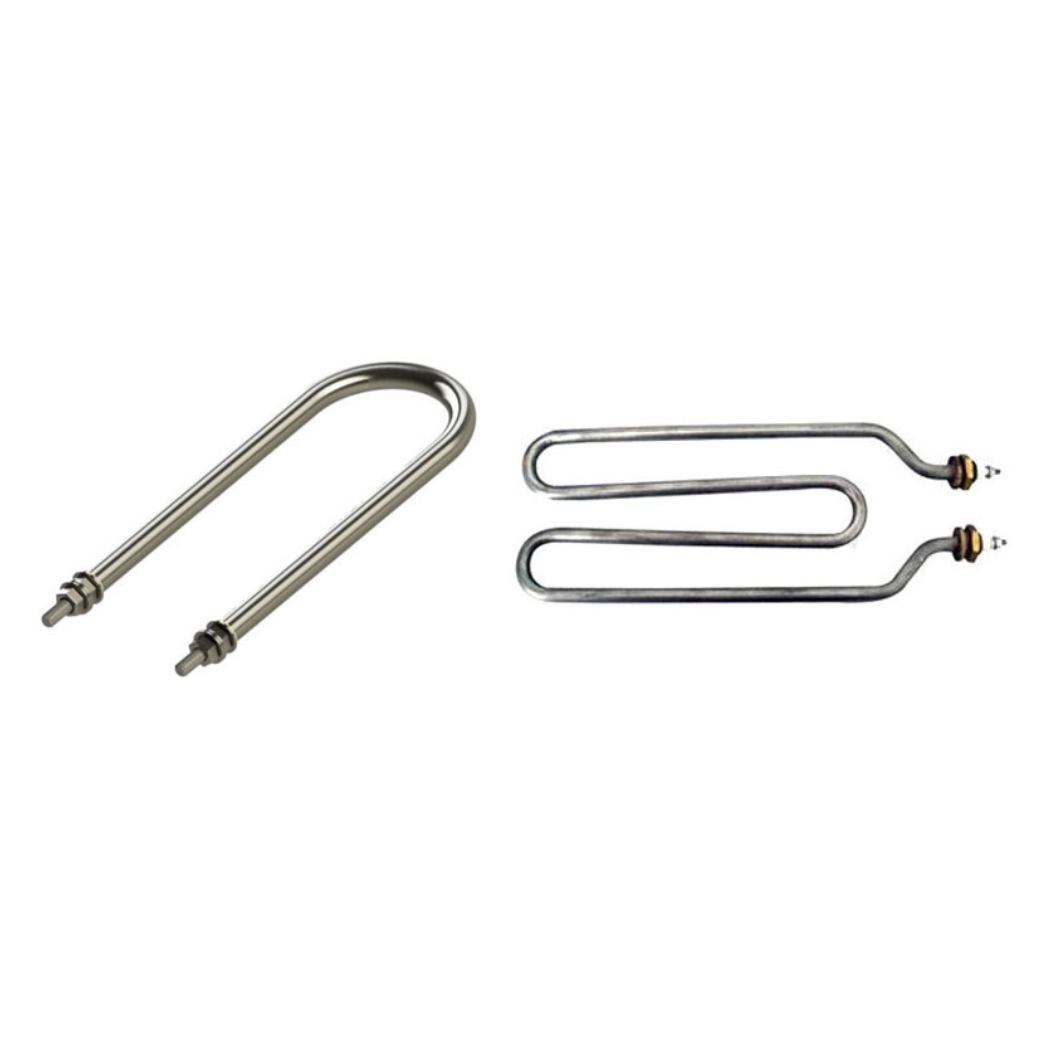

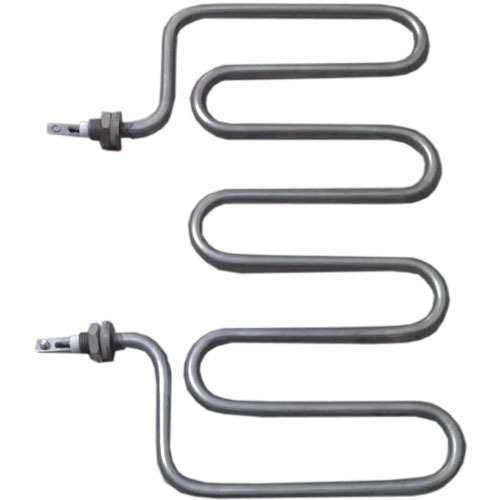

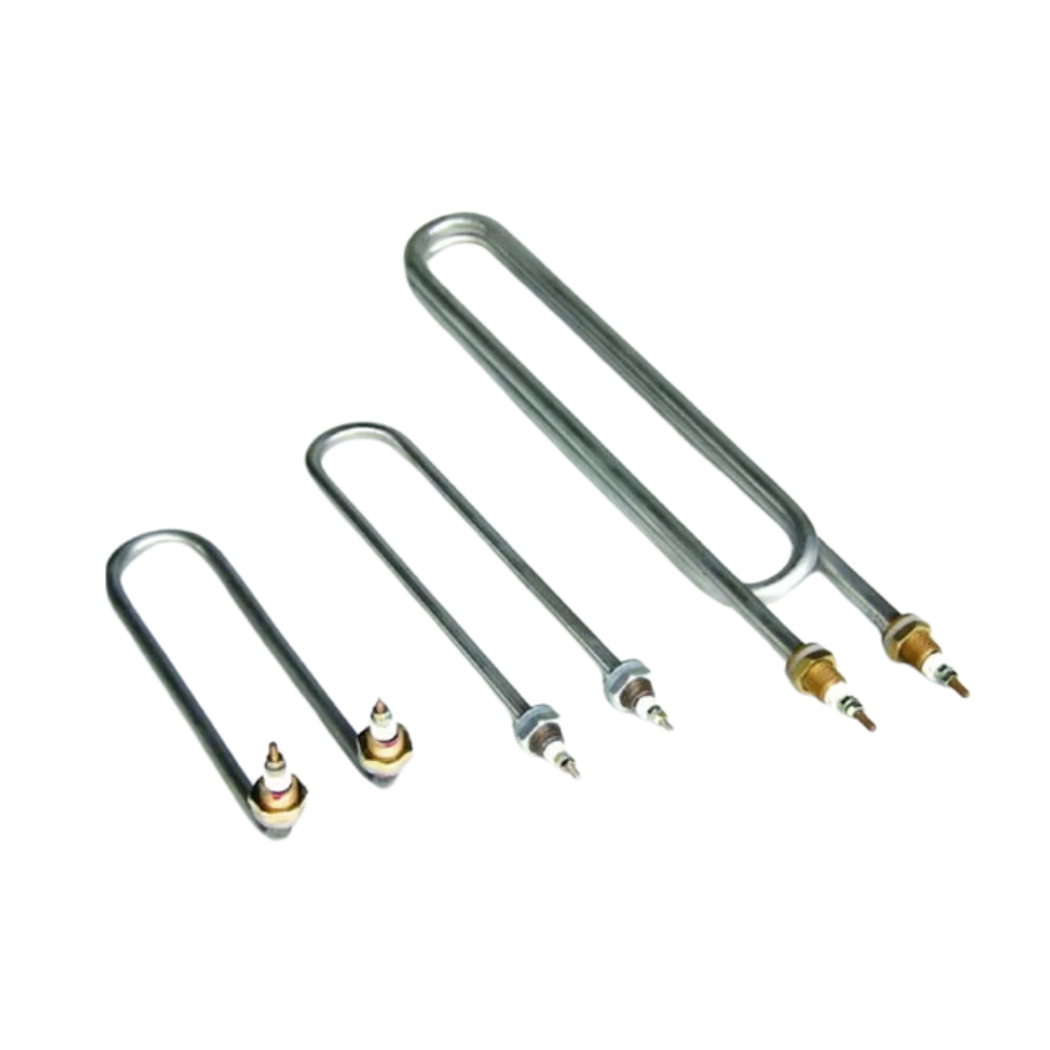

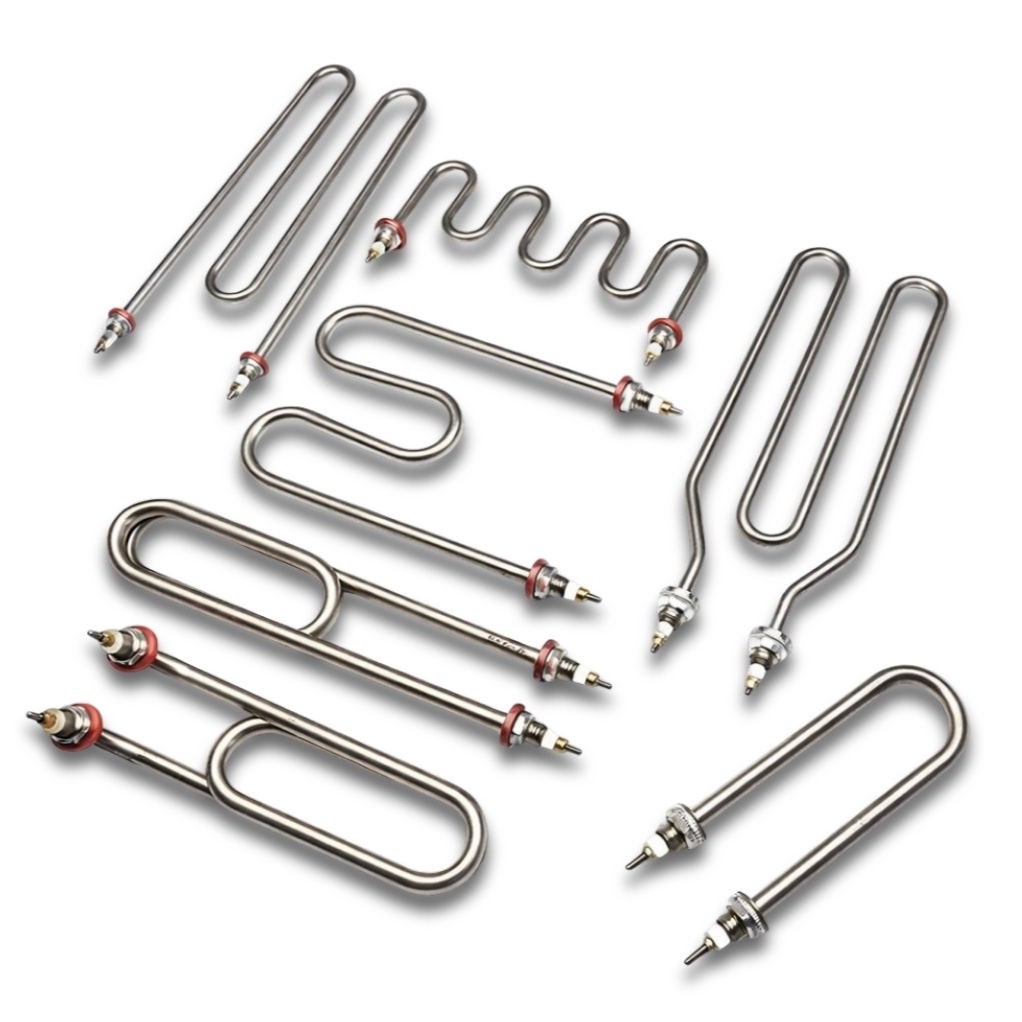

● Flexible shaping (straight, U-shaped, coiled)
● Sheath materials for specific environments
● High-purity MgO for thermal conductivity
● Optional fins or mounting fittings
Applications:
● Immersion heating for liquids
● Air heating in ovens and ducts
● Surface heating for molds and platens
● Radiant heating in industrial processes
Benefits:
● Highly versatile and customizable
● Durable in harsh environments
● Efficient heat transfer
● Wide range of wattages and sizes
Technical Insight: Tubular heaters support watt densities up to 45 W/in2, with their formability
allowing for tailored solutions in complex applications.
| Voltage | 100, 120, 130 |
|---|---|
| LENGTH - ft (m) | 10, 100, 9 |
