Description

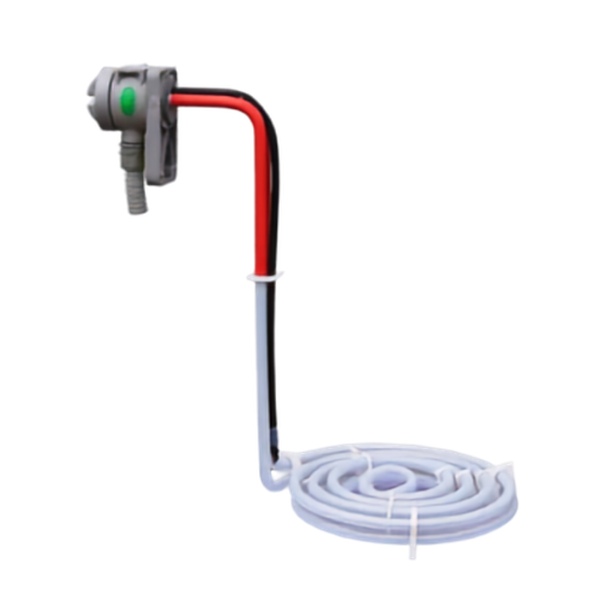

Vertical Coil-Shaped Teflon Heater
The Vertical Coil Shaped Teflon Heater is a high-performance immersion heater designed for heating highly corrosive liquids in electroplating, chemical processing, metal finishing, pharmaceutical, semiconductor, and surface treatment industries. Manufactured with premium PTFE (Polytetrafluoroethylene) or PFA fluoropolymer tubing and a heavy-duty stainless steel heating element, this heater delivers exceptional chemical resistance, efficient heat transfer, and reliable long-term performance in demanding industrial environments.
Its unique vertical coil-shaped heating design provides a larger effective heating surface while occupying minimal tank space. The closely wound coil allows heat to spread evenly throughout the liquid, ensuring faster temperature rise, improved thermal efficiency, and stable process control. This compact configuration makes it an excellent choice for installations where space is limited but high heating capacity is required.
The PTFE/PFA protective coating completely isolates the internal heating element from aggressive chemicals, making the heater highly resistant to acids, alkalis, plating solutions, and other corrosive liquids. This advanced construction minimizes maintenance requirements, extends equipment life, and ensures safe operation even during continuous industrial production.
Sensewell Vertical Coil Shaped Teflon Heaters are available in customized voltage ratings, wattages, immersion lengths, coil diameters, and mounting options to suit different industrial applications. Optional PT100 temperature sensors, thermostats, and over-temperature protection systems provide enhanced safety and precise temperature control for critical heating processes.
Key Features
- Premium PTFE/PFA fluoropolymer construction for superior corrosion resistance.
- Vertical coil design for maximum heating efficiency.
- Compact structure suitable for limited tank space.
- Uniform heat distribution throughout the process liquid.
- Heavy-duty stainless steel internal heating element.
- Excellent resistance to acids, alkalis, and plating chemicals.
- Low watt density for extended service life.
- Energy-efficient operation with reduced power consumption.
- Available in customized voltage, wattage, and dimensions.
- Optional thermostat, PT100 sensor, and over-temperature protection.
Working Principle & Product Performance
 |
The Vertical Coil Shaped Teflon Heater converts electrical energy into thermal energy through a premium stainless steel resistance heating element enclosed inside PTFE/PFA fluoropolymer tubing. This protective coating completely isolates the heating element from corrosive chemicals, ensuring safe operation, excellent chemical resistance, and extended service life.
Its vertical coil-shaped configuration provides a larger effective heating surface within a compact area, allowing rapid and uniform heat transfer throughout the process liquid. The coil arrangement promotes efficient liquid circulation, reduces temperature variations, and maintains stable heating even during continuous industrial operation. Designed for electroplating tanks, chemical process vessels, pickling lines, and surface treatment systems, the heater offers reliable performance in highly aggressive acid and alkaline environments while minimizing energy consumption and maintenance requirements. |
Working Process
| ✔ Immersed directly into the chemical process tank. | ✔ Stainless steel heating element generates heat. |
| ✔ PTFE/PFA tubing safely transfers heat into the liquid. | ✔ Coil design ensures even heat distribution. |
| ✔ Stable process temperature is maintained. | ✔ Continuous heating improves production efficiency. |
Performance Benefits
- High thermal efficiency with rapid heating.
- Compact vertical coil design saves tank space.
- Uniform temperature distribution.
- Excellent resistance to acids, alkalis, and corrosive chemicals.
- Low watt density for longer heater life.
- Energy-efficient industrial heating solution.
- Minimal maintenance and reliable operation.
- Suitable for continuous industrial production.
Technical Specifications & Construction Details
Every Sensewell Vertical Coil Shaped Teflon Heater is manufactured using premium industrial-grade materials to deliver reliable heating performance in highly corrosive environments. The heater is designed to withstand continuous exposure to aggressive chemicals while maintaining excellent thermal efficiency and long operational life. Each unit undergoes strict quality inspection to ensure safe operation, uniform heating, and dependable industrial performance.
Technical Specifications
| Parameter | Specification |
| Product Type | Vertical Coil Shaped PTFE Immersion Heater |
| Heating Element | High-Quality Stainless Steel |
| Outer Material | PTFE / PFA Fluoropolymer |
| Installation Type | Vertical Immersion |
| Voltage | 230V / 415V / Custom |
| Power Rating | As Per Customer Requirement |
| Operating Temperature | Up to 110°C (Depending on Process) |
| Chemical Compatibility | Acids, Alkalis, Plating Solutions & Process Chemicals |
| Customization | Available in Different Sizes & Wattages |
Construction Highlights
- ✔ Premium PTFE/PFA fluoropolymer protective tubing.
- ✔ Heavy-duty stainless steel resistance heating element.
- ✔ Compact vertical coil structure for maximum heat transfer.
- ✔ Excellent resistance to corrosive chemicals and process fluids.
- ✔ Low watt density for extended operational life.
- ✔ Heavy-duty terminal enclosure for enhanced electrical safety.
- ✔ Precision-engineered for continuous industrial applications.
- ✔ Custom-designed dimensions available for different tank sizes.
Quality Assurance
Every Vertical Coil Shaped Teflon Heater is manufactured under strict quality control procedures using high-grade raw materials and precision engineering techniques. Each unit is inspected for electrical safety, insulation resistance, dimensional accuracy, and heating performance before dispatch, ensuring reliable operation and long-term durability in demanding industrial environments.
Industrial Applications & Why Choose Sensewell
The Vertical Coil Shaped Teflon Heater is designed for industries that require dependable heating in highly corrosive environments. Its compact vertical coil design provides a larger heat transfer surface while occupying minimal tank space, making it an ideal solution for electroplating tanks, chemical process vessels, and surface treatment systems. The PTFE/PFA fluoropolymer coating ensures excellent resistance to aggressive chemicals and extends the heater’s operational life.
Manufactured using premium materials and advanced engineering techniques, the heater delivers consistent temperature control, reduced maintenance, and energy-efficient operation. It is suitable for both new installations and replacement of existing immersion heaters in industrial process tanks.
Industrial Applications
- Electroplating Plants
- Nickel Plating Tanks
- Chrome Plating Lines
- Zinc Plating Systems
- Gold & Silver Plating
- Chemical Processing Plants
- Acid Pickling Tanks
- Surface Treatment Units
- PCB Manufacturing
- Metal Finishing Industry
- Water Treatment Plants
- Pharmaceutical Industry
Why Choose Sensewell?
- Premium PTFE/PFA fluoropolymer construction.
- Excellent corrosion resistance.
- Compact vertical coil design.
- Uniform and energy-efficient heating.
- Heavy-duty stainless steel heating element.
- Low maintenance with long service life.
- Custom-built sizes, voltages, and wattages.
- Strict quality testing before dispatch.
- Reliable technical support and after-sales service.
